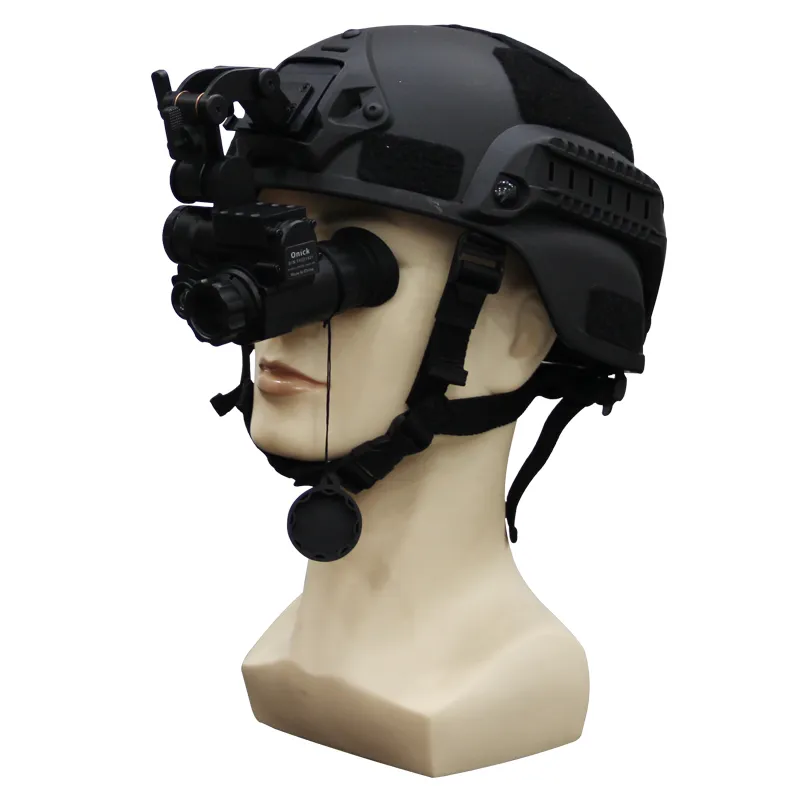

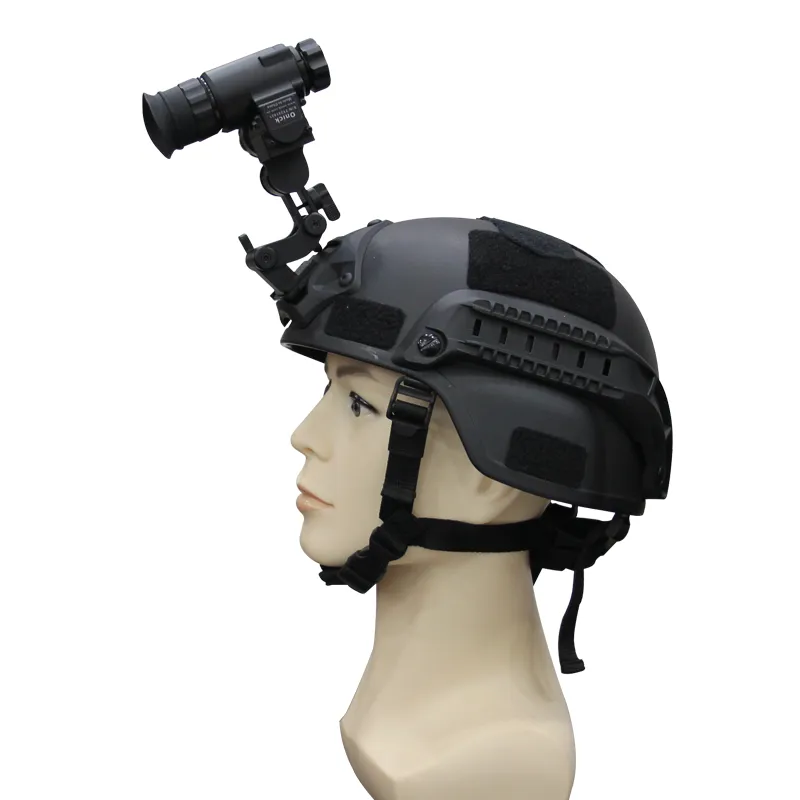

NVG-30 Helmet-mounted Monocular Digital Night Vision Device
Onick Owl Anti-theft Hunting Professional Low-light Night Vision Device NVG-30 adopts a high-performance second-generation image intensifier, which has excellent performance, small size, light weight, clear imaging, simple operation and high cost performance. The magnification can be changed by replacing the objective lens (or connecting the multiplier).
Product Details
Product Details
Onick Owl Anti-theft Hunting Professional Low-light Night Vision Device NVG-30 adopts a high-performance second-generation image intensifier, which has excellent performance, small size, light weight, clear imaging, simple operation and high cost performance. The magnification can be changed by replacing the objective lens (or connecting the multiplier). NVG-30 can be connected to digital cameras, cameras, and camcorders. It can be used with a gun aiming fixture (built-in reticle) or alone. The night vision device has a built-in infrared auxiliary light source and an automatic anti-glare protection system. It is highly practical and suitable for single-soldier combat. It can be worn with a helmet to assist night walking and night driving. The monocular design allows users to have a strong overall control ability in the dark and better respond to emergencies. It is widely used in military observation, border and coastal defense reconnaissance, public security inspection, surveillance, customs drug control, anti-smuggling, navigation and other dark environments.
Product features:
1. 11” ultra-clear large window, comfortable viewing without shadows
2. 80-120m full black image viewing distance
3. Ultra-clear conceptual resolution, clear imaging, large field of view
4. Ultra-wideband infrared anti-reflection film, clear day and night black and white/color effects
5. Supports photo recording, you can share the observation screen at any time
6. 3x magnification, effectively enlarge the observation field of view when watching
7. IP66 biological waterproof and dustproof, can work normally in -40℃~50℃ environment
Application Field
It is suitable for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting environment. It is an important tool for public security departments, armed police forces, special police forces, and guard patrols.
| Optical magnification | 1x |
| Digital magnification | 3x |
| Objective diameter | 17.5mm |
| Eyepiece type | with visibility adjustment |
| Field of view | 25.5° x14.5° |
| Visibility adjustment | ±5 |
| Focal length | 20mm |
| Focus adjustment | objective lens adjustment |
| Nearest focal length | 250mm |
| Exit pupil distance | 20mm |
| Exit pupil diameter | Ø7 |
| Lens coating | ultra wideband infrared anti-reflection film |
| Optical resolution | ≤11" |
| Camera type | CMOS |
| Camera pixel | 1920*1080 |
| Sensitive size | 1/2" |
| Lighting infrared wavelength | 850nm/940nm |
| Minimum illumination | 10-4LUX |
| Infrared power | 1W |
| Infrared light illumination adjustment | level 3 |
| Display image resolution | 1280*720 |
| Display size/type | 0.38 Lcos |
| White balance | Automatic |
| Display color mode | black and white, fluorescent green |
| Operating temperature | -40℃ -+ 55℃ |
| Working humidity | Maximum 70% |
| Storage temperature | -50℃ - +70℃ |
| Operating voltage | 3.6V-4.2V |
| Battery type | 18650x1 |
| Charging power supply | external |
| Battery life | more than five hours |
| Video output | wifi |
| Waterproof performance | IP66 |
| USB port | None |
| Photo function | Yes (App) |
| Audio and video recording function | Yes |
| Screen brightness adjustment function | Yes |
| Lighting brightness adjustment function | Yes (App) |
| Photo, video, playback and deletion functions | Yes (App) |
| Time setting function | Yes |
| Color scheme | Black |
| Size (mm) | 100x78x65 |
| Weight (g) | 237g |
